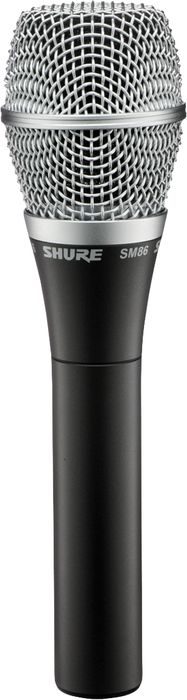

Shure SM86 Cardioid Condenser Vocal Mic

  • Write a Review
SKU
270090 000000000
Product Price $179.0
  • Free Shipping (48 Contiguous U.S. States)
Open Box$157.52

The Shure SM86 Cardioid Condenser Vocal Mic gives you all the advantages of Shure's SM line with condenser mic clarity. It's ruggedly built to handle...Click To Read More About This Product

In Stock & Ready To Ship

Gold Coverage: (What’s This?)
    Warranty Options
  Add to Cart
Add to Wish List
Set Alerts
Special Financing Offer
Musician's Friend Platinum Card

Special 12-month financing. Valid through 09/30/2018
Get DetailsAbout Special Financing Offers Opens in new window

Earn Points

Earn up to 1,432 reward points.

OVERVIEW

Studio-quality sound in a rugged stage mic.

The Shure SM86 Cardioid Condenser Vocal Mic gives you all the advantages of Shure's SM line with condenser mic clarity. It's ruggedly built to handle touring, with a frequency response tailored for clear reproduction of vocals. The cardioid polar pattern minimizes background noise and feedback. The SM86 has a built-in 3-point shockmount for minimizing handling noise and a 2-stage filter for reducing breath noises and pops.

It requires phantom power.

FEATURES
  • Condenser capsule provides studio-quality sound
  • Rugged design handles the abuses of touring
  • Tailored frequency response for clear reproduction of vocals
  • Cardioid polar pattern minimizes unwanted background noise
  • Works excellently with both stage monitors and in-ear personal monitors
  • Built-in 3-point shockmount minimizes handling noise
  • 2-stage filter reduces wind and breath pop noise
SPECIFICATIONS
  • Transducer type: Condenser (electret bias)
  • Frequency response: 50 to 18,000Hz
  • Polar Pattern: Cardioid
  • Output Impedance: 150Î at 1kHz (Recommended minimum load impedance: 600Î)
  • Sensitivity (at 1,000Hz): Open Circuit Voltage: -50dBV/Pa (3.15 mV) (1 Pa = 94dB SPL)
  • Output Clipping Level: 1000Î Load at 1,000Hz: +3dBV (1.41 V)
  • Maximum SPL (at 1,000Hz): 1000Î load (1% THD): 147dB
  • Self-Noise: 23dB typical, A-weighted
  • Dynamic Range (1000Î): 124dB (maximum SPL to A-weighted noise level
  • Signal-to-Noise Ratio: 71dB at 94dB SPL (IEC 651)*
  • *S/N ratio is difference between 94dB SPL and equivalent SPL of self-noise A-weighted
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
  • Power (Phantom Supply Requirement): 11 to 52 VDC, positive at both pins 2 and 3
  • Current Drain: 5.2 mA
  • Connector: Three-pin (XLR) professional audio
  • Dimensions (H x W): 183mm x 49mm, 7.2" x 1.92"
  • Net Weight: 278g (9.8oz.)
  • Environmental Conditions;Operating: -18 to 60 C (0 to 135 F) (relative humidity >90%), Storage: -29 to 74 C (-20 to 165 F) (relative humidity >80%)
