MF MD HG01 Drumming Essentials 04-25-18

Tascam TASCAM DP-02FX/CD Recording Package

  • Write a Review
Product 482283
Product Price $0.00
  • Free Shipping With Backstage Pass (48 Contiguous U.S. States)

This recording package includes the TASCAM DP-02FX/CD Digital Portastudio, one MXL MXL 990 condenser microphone with shockmount, Fostex PM0.4n powere...Click To Read More About This Product

We're sorry-this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Customers Also Viewed:

CD-quality recording with a large diaphragm condenser mic, powered monitor, mic stand, and cables.

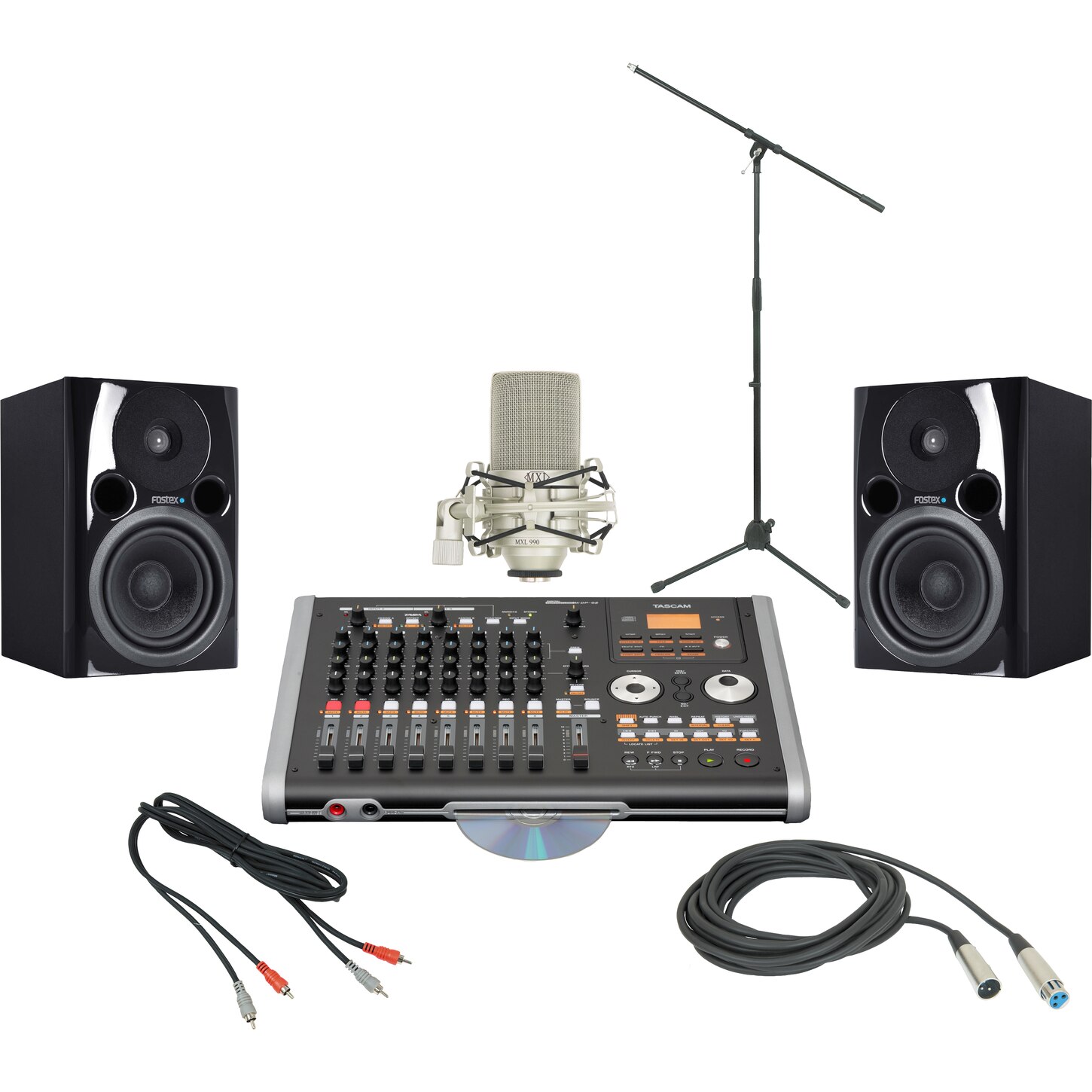

This recording package includes the TASCAM DP-02FX/CD Digital Portastudio, one MXL MXL 990 condenser microphone with shockmount, Fostex PM0.4n powered studio monitors, a Musician's Gear MS-220 tripod mic stand with fixed boom, two 5' Livewire TRS-TRS balanced patch cables, and a 20' MG Lo-Z microphone cable.

TASCAM DP-02FX/CD Digital Portastudio
TASCAM's DP-02 makes recording simple by matching 8-track CD-quality recording with a Portastudio interface--so you can ditch the menus and concentrate on the music. A pair of record-quality TASCAM mic preamps features XLR inputs with phantom power for condenser mics and a guitar input for direct recording. Each channel gives you dedicated controls for instant access to fader level, record arm/track mute, pan, effect send, high and low EQ. There's also an EQ frequency button for finer control over the mix.

Two effects processors are included in the DP-02. A multi-effects processor on the input provides great-sounding overdrive, flange, delay, and more for your guitar, vocal, drum and bass tracks. In addition, there's a reverb processor on a send and return for adding hall, room, plate, or chamber reverb to your mix. The DP-02 is loaded with great TASCAM extras like a chromatic tuner, metronome, and bar-and-beat display for getting around your song.

The DP-02 records two channels at a time to a built-in 40GB hard drive. When you're satisfied with your production, arm the dedicated master track for your stereo mixdown. You can transfer your tracks and mixes or backup your song to a computer through a speedy USB 2.0 connection or burn it to a CD with the slot-loading drive. No other workstation makes recording so simple, affordable and fun as the TASCAM DP-02.

MXL MXL 990 Condenser Microphone with Shockmount
The MXL 990 Condenser Microphone with Shockmount has a silky, sweet high end while retaining tight, solid low and midrange reproduction. The 3/4" gold-sputtered diaphragm creates a professional sound suited for digital and analog recording. Attractive vintage body style with champagne finish. 30Hz-20kHz frequency response. 130dB maximum SPL. Includes custom shockmount, mic stand adapter, and case.
Requires phantom power.

PM0.4n Powered Studio Monitors

Since its debut the Fostex PM0.4 has earned a reputation for high performance and sonic clarity. The Fostex PM0.4n adds impressive good looks to an already stellar resume of sound reproduction. Need an attractive-looking speaker with great sound for installation in a club, bar, restaurant, or retail environment? No problem. With its compact size and wall mountability the PM0.4n fits right in. Available in a range of 5 high-gloss colors, this new monitor sounds even better than it looks. And it looks stunning.


The PM0-4 monitor features internal bi-amplification employing two state-of-the-art amplifiers which are precisely calibrated to match the performance of the drive units and utilize high quality discrete bipolar output devices:HF 18w, LF 18w. High-capacity power supply units are used for excellent transient response. PM0.4 offers TRS and Line inputs

High Frequency Unit:

The soft dome tweeters employ Fostex's UFLC technology (Poly Urethane Film Laminated Cloth) to achieve light weight and high stability performance.

Low Frequency Unit:

Uses a mixture of cut and milled fibres made from aromatic polyamide impregnated with resins to simultaneously achieve high rigidity and
optimum damping. An olefin film is thermally adhered to its surface to control frequency response and ensure reliability. Distortion is minimized by the use of an ultra-pure copper voice coil.

Musician's Gear MS-220 Tripod Mic Stand with Fixed Boom
The MS-220 Tripod Microphone Stand has a thread adapter and tubular legs. Adjustable height from floor to top thread is 35" to 61-7/8". The 30-1/4" boom is fixed in length.

2 Livewire TRS-TRS Balanced Patch Cable
For serious-minded musicians, Live Wire cables have the strength and durability to withstand more than everyday use. This is a balanced 5' long (TRS) 1/4" phone connector on both ends. Professional interconnect. Nickel finish.

Your cable is your sound. Superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles. Sturdy construction enhances signal and performance. Flexible design eliminates kinks and twists for a tangle-free performance whether you're in the studio or on the stage.

MG Lo-Z Microphone Cable
This flexible 20' mic cable has Neutrik male XLR to female XLR connectors.

Tascam DP-02FX/CD Digital Portastudio
  • Eight-track recording at uncompressed 44.1k/16-bit audio quality
  • Portastudio-based interface with volume fader, pan, effect send, high and low EQ controls per channel
  • EQ frequency button to access high and low EQ shelf frequencies
  • USB 2.0 interface for transferring tracks, mixes and backup files to a computer
  • Dedicated stereo master track for mixdown
  • Internal metronome and bar/beat display for song position
  • Headphone output
  • Stereo line outputs on RCA analog and S/PDIF optical digital connectors
  • 40GB internal hard drive
  • Multi-effects processor with guitar, bass, vocal and drum programs
  • Stereo reverb processor with send/return controls for multi-channel mixing
  • Built-in chromatic tuner
  • Built -in CD-RW burner for CD mastering and song backup
MXL 990 Condenser Microphone with Shockmount
  • 3/4" gold-sputtered diaphragm
  • Attractive vintage body style with champagne finish
  • 30Hz-20kHz frequency response
  • 130dB maximum SPL
  • Sensitivity: 15MV/pa
  • Equivalent noise: 20dB (A-weighted)
PM0.4n Powered Studio Monitors
  • Ultracompact - can be wall mounted using a suitable bracket such as K&M model 24185
  • Exclusively designed aromatic polyamide LF driver and UFLC (ply Urethane Film Laminated Cloth)
  • HF driver for maximum sound performance
  • High-efficiency bi-amplification with 18W LF, 18 HF
  • Offers superb audio transparency and quality
  • Beautiful glossy front baffle with gently tapered top
  • Black finish
Tascam DP-02FX/CD Digital Portastudio
    • Recording Medium: 40GB internal hard drive
    • Recording Resolution: 44.1kHz/16-bit
    • Number of Recording Tracks: 8 tracks plus Stereo Master track
    • Number of Simultaneous Recording Tracks: 2 tracks
    • Frequency response: 20Hz-20kHz (+1/-3dB)
    • Signal-to-Noise Ratio: >85dB (A-weighting, 22kHz LPF)
    • T.H.D.: 0.02% (1kHz, 10dBV, 22kHz LPF, master fader at nominal)
    • Analog In (Input A/B)
    • Connector: XLR-3-31 type (Pin2:hot) and 1/4" TRS phone
    • Nominal/Max Input Level: -8dBu/+8dBu
    • Input Impedance: 2.4kÎ, >10kÎ on guitar input
    • Phantom Power: 48V (on/off selectable)
    Line Output
    • Connector: 2x unbalanced RCA jacks
    • Nominal/Max Output Level: -10dBV/+6dBV
    • Output Impedance: 1kÎ
    Effect Send
    • Connector: 1/4" phone (unbalanced)
    • Nominal/Max Output Level: -10dBV/+6dBV
    • Output Impedance: 1kÎ
    Digital Out
    • Connector: Optical (TOSLINK) digital audio output
    • Data format: S/PDIF
    • (PHONE 1, 2)
    • Connector: 1/4" stereo phone jack
    • Max. Output: 25mW + 25mW (@32Î)
    • Dimensions (w x h x d): 16.4" x 2.6" x 11.8"
    • Weight: 4.1lb.
    • Power Requirement: 12V, 2.5A (TASCAM PS-1225 power adaptor)
    PM0.4n Powered Studio Monitors
    • Enclosure system: 2-way bass-reflex
    • Drivers: LF 4" cone speaker; HF 5/8" soft dome tweeter
    • Freq. response: 60Hz to 30kHz
    • Low-frequency cut-off: 60Hz (-10dB)
    • Low-frequency cut-off: 22Hz (-10dB)
    • Output power: 18W (LF) x 18W (HF)
    • Input terminals: TRS phone (balanced), RCA (unbalanced)
    • Distortion: Less than 0.1% T.H.D. @12W, 4-Î 20Hz-20kHz
    • Signal-to-noise ratio: Less than 75dB, 20Hz-30kHz, unweighted
    • Power Consumption: 40W
    • Dimensions: 5-5/8"W x 8-5/8"H x 7-1/8" (144mm x 220mm x 180mm)
    • Net Weight 8.26lb. (3.75kg)

    Review Snapshot

    by PowerReviews
    TASCAM DP-02FX/CD Recording Package

    (based on 2 reviews)

    Ratings Distribution

    • 5 Stars



    • 4 Stars



    • 3 Stars



    • 2 Stars



    • 1 Stars



    Reviewed by 2 customers

    Displaying reviews 1-2

    Back to top

    (6 of 7 customers found this review helpful)


    it does tha job well.

    By Natedeezy

    from Miami, FL

    See all my reviews

    Comments about TASCAM DP-02FX/CD Recording Package:

    This studio is great, it does what it is supposed to do. The cd quality is right on. It doesn't take a smart artist to use, but I do recommend you read the manual all the way through to get the studio potential out of it and use the effects right. The mic stamd is not the best and I recommend a pop filter to get better quality sound. Add a cheap berhinger mixer to it to get even better sound recording also. The mic is good enough to throw some quality tracks. Make sure to position as a over hang mic for better sound. The fostex monitor speakers are awesome. Like I said, I know its easy to use, but read the manual to get the full potential out of the studio. Can't complain about the quality of the tracks, they sound crisp and clean. It's worth the money, so buy it now.



    By JB

    from Campbell Hall NY

    See all my reviews

    Ask me a question

    Comments about TASCAM DP-02FX/CD Recording Package:

    Stuff came when promised.very happy with the results so far.
    I just needed the basics for my home studio.Had little space and less time.The Tascam DP 02 worked fine.You have to stick with it at first as it is a little intimidating but its worth the struggle.You Tube came in handy for this one.The condensor mic is actually quite good records room fine.The Fostex monitors are super.All in all a great buy for a real good price!
    Demos are coming out great.
    You can't beat the price this went for!
